This is my very first modular synth which I built during the Covid-19 lock-down ;)
I decided to use the Kosmo Format because I like its pragmatic nature. Big jacks, panel sizes which are compatible with the cheap aluminum sheets on eBay, Eurorack-compatible electronics (+-12V, 2x5 and 2x8 pin IDC connectors) etc.
A more detailed description will follow soon.

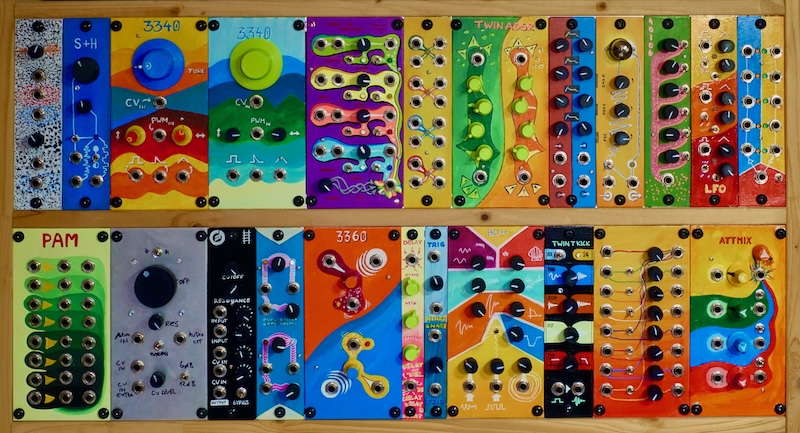

Top row
From left to right:
- Noise generator (white, pink, blue and different controls for the grain)
- Sample and Hold based on LF 398
- VCO based on CEM 3340
- VCO based on CEM 3340
- 1183 Quad VCA Mixer using two AS3360 chips
- Buffered multiple
- Twin ADSR
- Dual VCA
- Valve distortion
- Drone
- LFO
- Clock divider
Buttom row
- Passive Multiplier
- VCF Steiner
- Moog Ladder VCF
- Dual Balter Delay
- Dual VCA based on 3360
- Delay based on 2399
- Snare and Cimbal
- Kick
- Twin-T Kick
- 8-Channel Mixer
- 4-Channel Mixer
